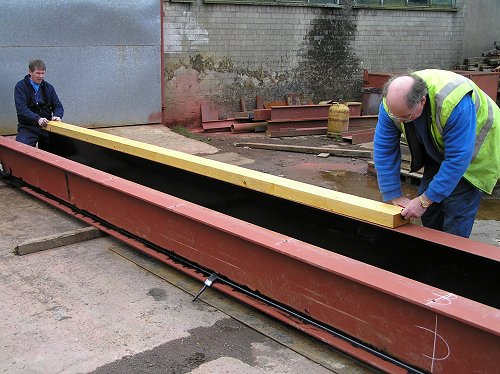

Above: The 6X3 wall plates are bolted to the beams.

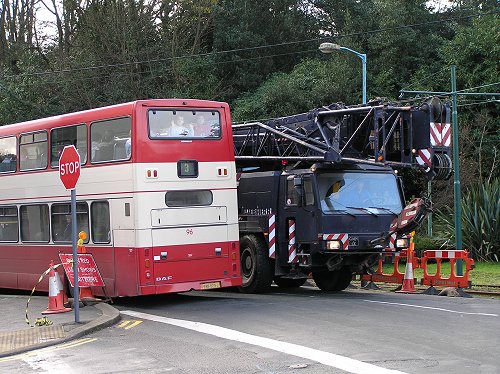

Above: The huge 100 ton crane carefully negotiates the bend and a bus in Laxey Village.

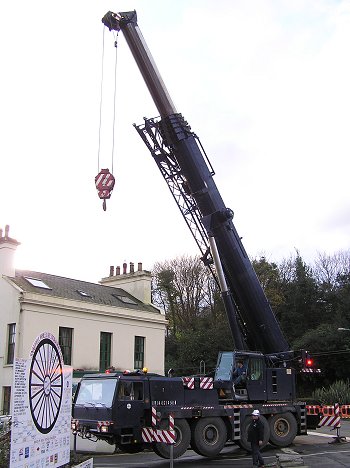

Above: The crane from Apex Cranes is set up at the top of captains hill.
A road closure order was in place for several hours.

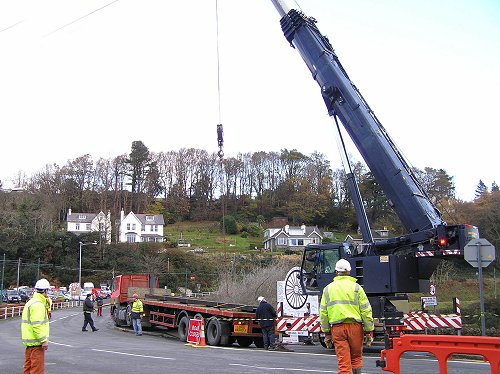

Above: The new bridge beams arrive from Foxdale.

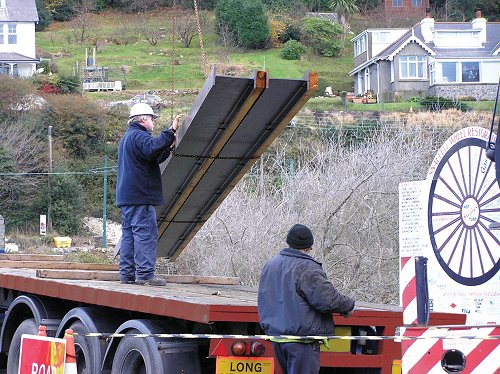

Above: The steel beam are unloaded onto the top end of the washing floors above the wheel.

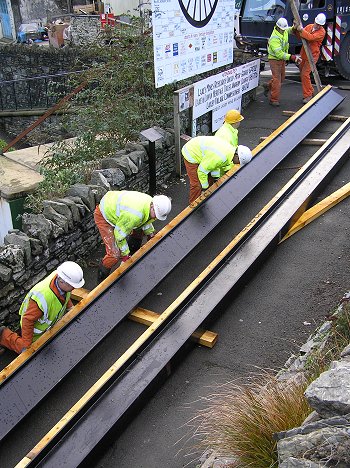

Above: The crew roll the beams into an upright position ready for the main lift.
